- High-concerned chemical: None
- Power Supply: Normal
- Internal Storage: 128G
- Supported Operating Systems: No

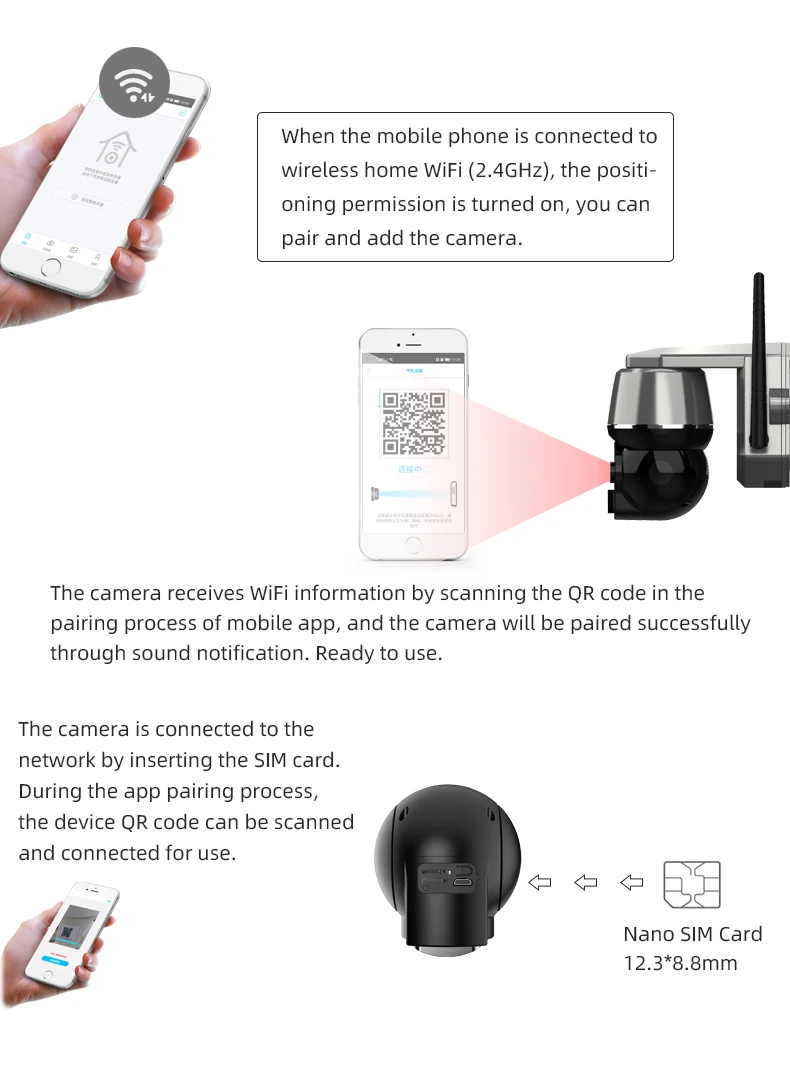

- Supported Mobile Systems: iOS,Android
- Lens (mm): 3.6mm
- Connectivity: 4G
- Sensor: CMOS
- Focal Length: 3.6mm
- Installation: Side
- Technology: Pan / Tilt / Zoom
- Model Number: IPC-HDQ7
- Brand Name: tysvance
- Origin: Mainland China
- Smart home platform: Other
- App: Ubox/i-Cam+ Optional
- Battery Capacity: 9600mAh
Camera Specification:
|
Model NO. |
IPC-HDQ7-W |
IPC-HDQ7-4G |
||
|
Network |
WiFi |
2.4 GHz, IEEE802.11b, 802.11g, 802.11n Draft |
N/A |
|
|
4G |
N/A |
Southeast Asia Version |
B1/B3/B5/B8/B34/B38/B39/B40/B41 |
|
|
Australia Version |
B1/B2/B3/B4/B5/B7/B8/B28/B40/B66 |
|||
|
Japan Version |
B1/B3/B8/B18/B19/B26 |
|||
|
America Version |
B2/B4/B5/B12/B13/B14/B25/B26/B41/B66/B71 |
|||
|
Europe Version |
B1/B3/B5/B7/B8/B20/B38/B40/B41 |
|||
|
Video |
Master sensor |
1080P, lngenic T31ZL+2063 |
||
|
1440P, lngenic T31ZX+4653 |
||||
|
Resolution |
Main stream: 1920×1080@15fps, Sub stream: 640×360@15fps |
|||
|
Format |
Compression formatH.265 |
|||
|
Video file formatMP4 |
||||
|
Lens |
4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom |
|||
|
Night vision |
4pcs array LEDs, night vision distance 30m. Full-colorful day/night |
|||
|
Audio |
Compression |
G.726/AAC. Audio code rate: 8Kbps, 16bit |
||
|
Input/Output |

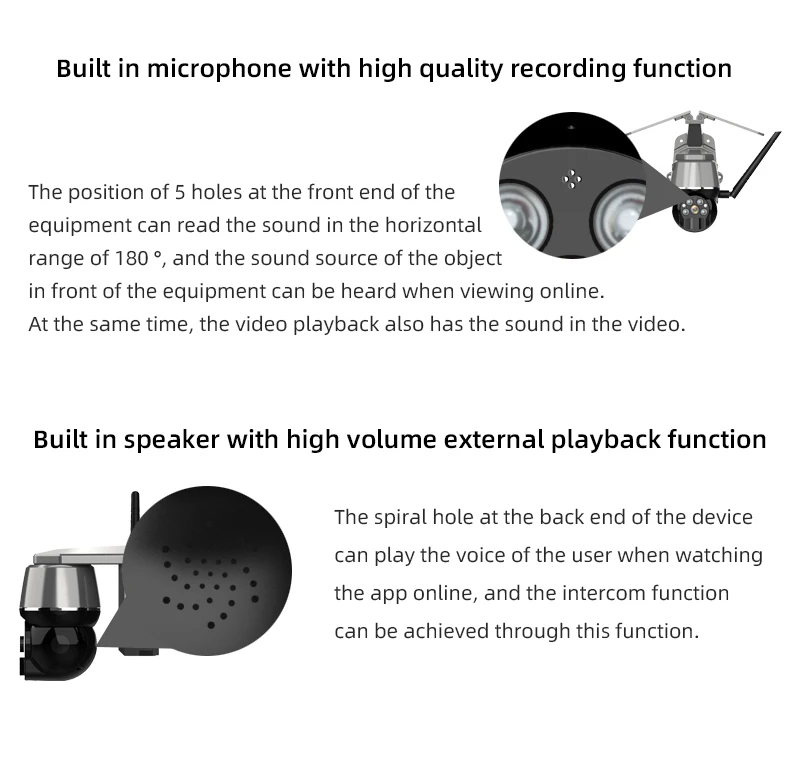

Built-in MIC and Speakers, support two way audio |
|||
|
Alarm |

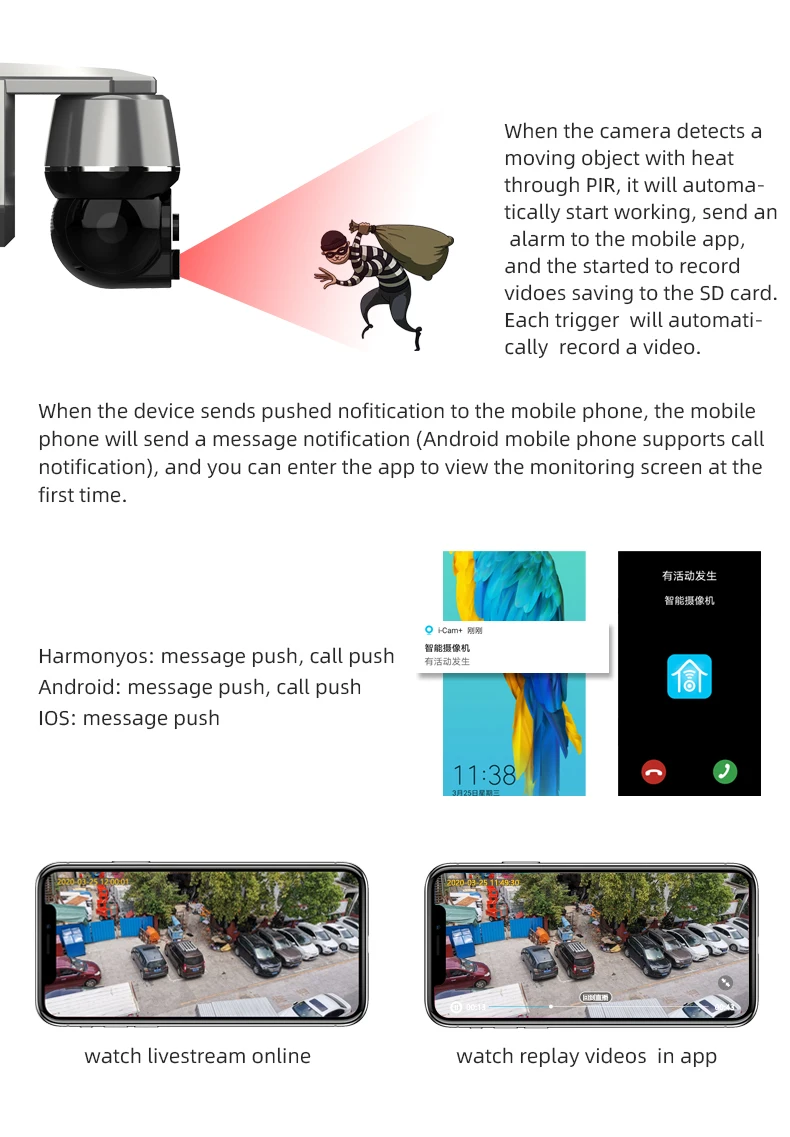

PIR motion detection |
Support max 12 meters PIR detection range. |
||
|
Alarm linkage |
Alarm record videos to Micro SD card;Alarm mobile phone message push |
|||
|
Video storage |
Memory card |
Support up to 128G micro SD card. Support cloud storage（Open experience for 30 days, renewal required thereafter） |
||
|
Record |
PIR alarm recording. |
|||
|
Replay |
Support App remote play and download the video |
|||
|
Power supply |
Solar panels |

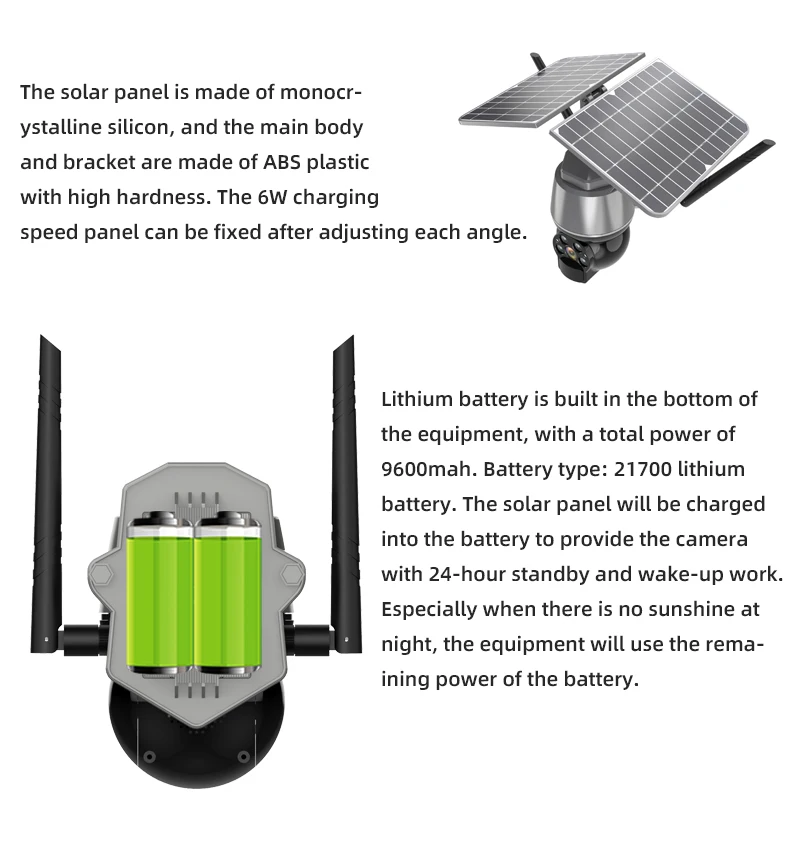

3+3W monocrystalline silicon solar panel |
||
|
Battery |
Built-in 2 pcs 21700 battery, total volume max 9600mAh |
|||
|
Operating mode |
Low power working mode |
|||
|
Wake-up method |
PIR alarm wake up, remote manual wake up |
|||
|
Hibernation |
When alarm end or remote connection disconnected. |
|||
|
Power consumption |
Sleeping stand-by power: 0.03W; Working: 1.3W@days/3W@night |
|||
|
PTZ |
Rotation angle |

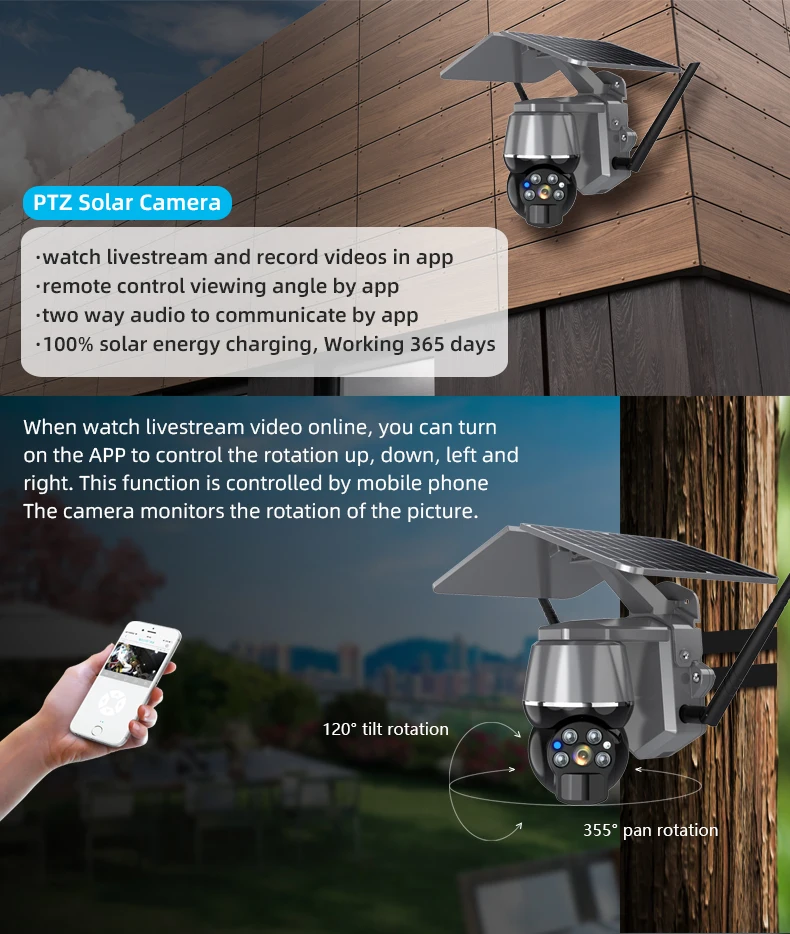

Horizon Pan: 0°～355°, Vertical Tilt: 0°～120° |
||
|
Spinning speed |
Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S |
|||
|
Other |
Power input |
DC5V 2A |
||
|
Environment |
Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing |
|||
|
Shell material |

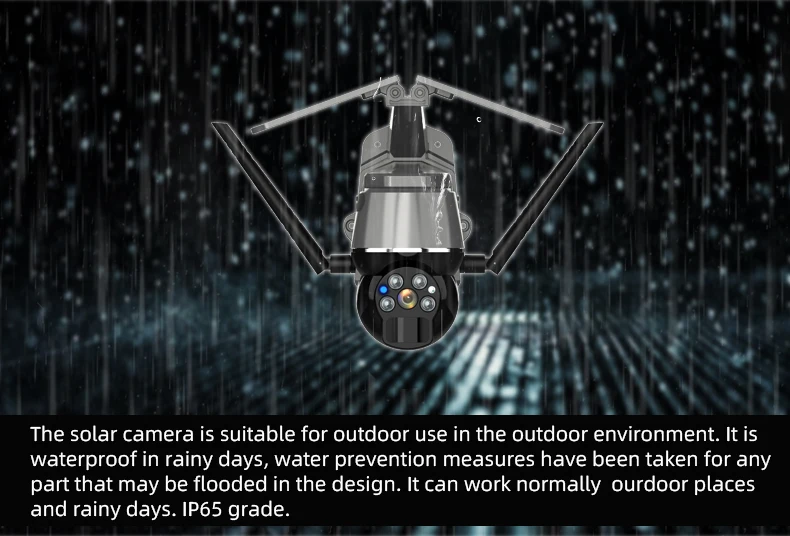

ABS fireproof plastic material, vandal-proof, waterproof level IP65 |
|||
|
Power cable |
Type-c interface, extension cable 3 meters |
|||
|
Product Size |

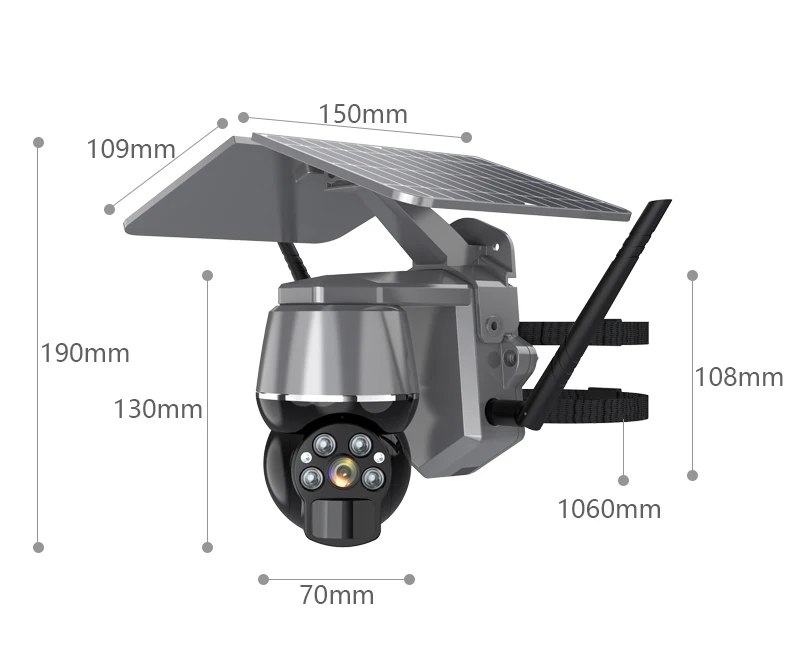

220mm×150mm×109mm(L×W×H) |
|||
|
Package dimensions |
245x218x124mm(L×W×H) |
|||
|
Packing list |
IP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual,Cable tie |
|||
